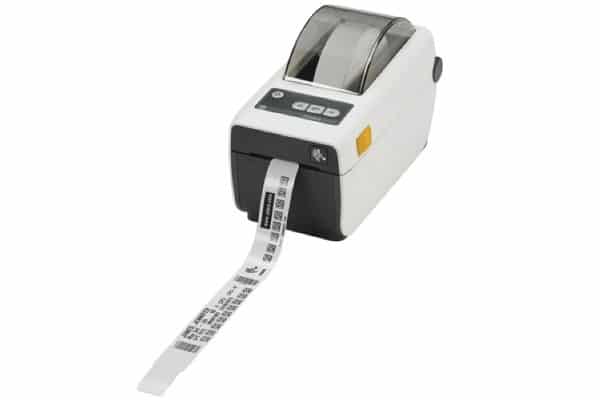

ZD410-HC DIRECT THERMAL PRINTER


HEALTHCARE READY ULTRA-COMPACT 2-INCH PRINTER



You need to print high-resolution labels for patient records and patient wristbands to medication prescriptions and tiny specimen vials. The closer printing can be done to the point-of-task, the more productivity and accuracy are improved. But in nurses stations, pharmacies and labs, space is an issue — until now. Smaller than a loaf of bread, this easy to deploy and easy to use ultra-compact fast printer fits on the most space constrained desk or shelf. Designed for healthcare, this printer is ready for constant disinfecting and comes complete with a healthcare-compliant power supply. Optional 300 dpi printing ensures the tiniest labels are crisp and legible. And Zebra OneCare service provides unmatched support that covers everything from worn out printheads to normal wear and tear. The ZD410 — the “fits anywhere” printer that puts high quality label printing, right where you need it.

Adaptable to Meet Your Current and Future Needs

The movable media sensor supports media with off-center black marks, die-cut notches or multiple labels across the width. Easily deploy in practically any technology environment with virtually every modern connectivity option, including USB, auto-sensing serial or 10/100 Ethernet and the latest wireless options — 802.11ac Wi-Fi and Bluetooth 4.1. You can support Wi-Fi and Ethernet connectivity simultaneously. Add new communication or media handling options in the future, such as serial or Ethernet connectivity, and a peeler and a cutter, right on site. Backwards compatibility with existing applications, formats and printer languages allows you to easily upgrade from your aging Zebra LP 2824 Plus — just plug in the ZD410 and you’re back up and running. And with support for Zebra ZPL and EPL printer languages and many non-Zebra languages, it’s easy to upgrade from competitive printers.

Easy to Use and Troubleshoot

Five status icons — status, pause, data, supplies and network —provide the information needed to keep the ZD410-HC up, running and available. At glance, users can see if the media needs to be replenished, if the network connection is down and more.

Standard Features

• Direct Thermal print method
• IEC 60601-1 compliant power supply and healthcare wipeable plastics
• ZPL and EPL programming languages
• 5 status icon, 3 button user interface
• USB 2.0, USB Host
• OpenACCESS™ for easy media loading
• Dual-wall frame construction
• ENERGY STAR qualified
• ZebraDesigner Essentials – easy label design tool free at
www.zebra.com/zebradesigner
• Two-year standard warranty

Physical Characteristics

Dimensions 8.6 in. L x 4.5 in. W x 6.0 in. H
220 mm L x 115 mm W x 151 mm H
Weight 2.2 lbs./1.0 kg

Printer Specifications

Resolution 203 dpi/8 dots per mm
Optional 300 dpi/12 dots per mm
Memory 512 MB Flash; 256 MB SDRAM
Maximum Print Width 2.2 in./56 mm for 203 dpi and 300 dpi
Maximum Print Speed 6 in./152 mm per second (203 dpi)
4 in./102 mm per second (300 dpi)
Media Sensors Full width, moveable reflective/black mark sensor; multi-position transmissive/ gap sensor
Firmware ZPL II; EPL 2; EPL Line Mode; XML; ZBI

Media Characteristics

Maximum Label Length 39.0 in./991 mm
Maximum Label and Media Width 2.36 in./60 mm
Media Roll Size 5.00 in./127 mm outer diameter
Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1mm), 2.0 in., (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters
Thickness 0.003 in. (0.08 mm) min. – 0.0075 (.1905 mm)
Media Types Roll-fed or fan-fold, die cut or continuous direct thermal labels with or without black mark, tag stock, continuous receipt paper, and wristbands

Operating Characteristics

Operating Temperature 40° to 105° F/4.4° to 41° C
Storage Temperature -40° to 140° F/-40° to 60° C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Electrical Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified; optional 2750 mAh battery

Printer Supplies

Keep your Zebra printer up and running with genuine Zebra printer supplies, available directly from Zebra.

Options and Accessories

Media Handling Field installable dispenser — label peel and present with label present sensor; field installable cutter
Communications Field installable RS-232 auto-sensing Serial, DB-9; Factory installed or field installable Ethernet — 10/100 internal; factory installed wireless dual radio: 802.11ac Wi-Fi and Bluetooth 4.1; Bluetooth Low Energy included as standard on network connected models
Battery Provides power to the printer to support a full shift of printing at maximum print speed; supports all media handling options
Healthcare Model Healthcare model with IEC 60601-1 compliant power supply and healthcare wipeable plastics
Real Time Clock Real time clock included as standard on network connected models
Keyboard Display Unit ZKDU keyboard display units for stand-alone printing solutions
Mounting Plate Optional accessory to secure ZD Series printers to countertops or shelves

Fonts/Graphics/Symbologies

Barcode Ratios
2:1 and 3:1
1D Barcodes Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
2D Barcodes Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Fonts and Graphics 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts,five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font
64 MB user available non-volatile memory, 8 MB user available SDRAM

Regulatory

IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
