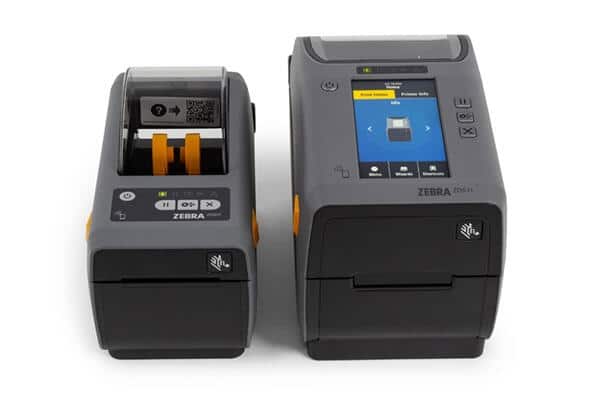

ZD611 DESKTOP PRINTER
INVEST IN THE BEST: PREMIUM FEATURES, MAXIMUM PERFORMANCE AND UNMATCHED SECURITY FOR YEARS OF QUALITY PRINTING
You need a premium, compact printer that’s feature-rich and built to perform flawlessly – day in and day out. Don’t compromise. Get it all with Zebra’s ZD611 desktop printers, featuring an innovative new architecture to power our ever-expanding printer capabilities and software. They offer unmatched security that’s constantly evolving to safeguard your sensitive data and shield you from cyberattacks. And, add enhanced features, connectivity and media-handling options whenever you’re ready. The full-color LCD touch display with intuitive menu – standard on all thermal transfer models – and increased remote-management capabilities make ZD611 printers easy to use. Together, these give you outstanding print performance, years of optimal use, industry-leading reliability and unparalleled intelligence and security.
EXPECT THE BEST
Premium Printing Performance
Rely on the ZD611 to help you power through – day after day. From outstanding print quality to portability for application flexibility to emerging technology to field-installable options, the ZD611 stands apart. Available in direct thermal, thermal transfer, linerless, healthcare and RFID models, the ZD611 supports a wide variety of use cases.
SIMPLE TO SETUP, EASY TO MAINTAIN
Operate with Ease, Securely
Backed by Zebra’s innovative Print DNA software suite, ZD611 printers are incredibly simple to operate. Deploy them anywhere with setup tools, wizards and emulation capabilities. The intuitive user interface is easy to use with minimal training and allows you to see status at a glance with the five LED icons. Take advantage of robust remote management capabilities that alleviate IT burdens. And, built-in security hardens your infrastructure from cyberattacks.
Load Media Easily
Color-coded touch points and a new media-handling design guide you through speedy media changes to keep your printers operational and your workers on task. Replace ribbon intuitively and quickly with less mess, hassle and training time – and fewer calls into IT.
Standard Features
| • Print methods: Thermal Transfer or Direct Thermal • ZPL and EPL programming languages • 4.3” full color touch LCD (resolution: 480 wide x 272 high) with 3-button user interface (thermal transfer and RFID models) • 5 status icon, 3 button user interface (direct thermal model • Ethernet, USB 2.0, USB Host • Printer setup mobile app for Android and iOS via BLE (Bluetooth Low Energy 5) connection* * BLE is intended for use with Zebra printer setup mobile app only • Real Time Clock (RTC) • Media dancer for excellent print quality (thermal transfer models) • OpenACCESS™ for easy media loading • Dual-wall frame construction • ENERGY STAR® certified • ZebraDesigner Essentials – easy label design tool free at www.zebra.com/zebradesigner • PDF Direct • Two-year standard warranty |
Physical Characteristics
| Dimensions | ZD611d: 8.6 in. L x 4.5 in. W x 6.0 in. H 220 mm L x 115 mm W x 151 mm HZD611t: 9.56 in. L x 5.46 in. W x 6.66 in. H 242.9 mm L x 138.7 mm W x 169.2 mm H |
| Weight | ZD611d: 2.36 lb./1.07 kg ZD611t: 3.59 lb./1.629 kg |
Printer Specifications
| Operating System | Link-OS® printer operating system |
| Resolution | 203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional) |
| Memory | 512 MB Flash; 256MB DDR3 SDRAM |
| Maximum Print Width |
2.2 in./56 mm for 203 dpi 2.13 in./54 mm for 300 dpi |
| Maximum Print Speed |
8 in./203 mm per second (203 dpi) 6 in./152 mm per second (300 dpi) |
| Media Sensors | Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor |
| Firmware | ZPL II; EPL 2; XML; ZBI; PDF Direct |
Media and Ribbon Characteristics
| Label Length | Minimum: 0.25 in./6.35 mm Maximum: 39.0 in./991 mm |
| Media Width | Minimum: 0.585 in./15 mm Maximum: 2.25 in./57 mm |
| Media Roll Size | Maximum outer diameter: 5.00 in./127 mm Core inner diameter: 0.5 in./12.7 mm and 1.0 in./25.4 mm standard, 1.5 in./38.1 mm, 2.0 in./50.8 mm and 3.0 in./76.2 mm using optional adapters |
| Media Thickness |
0.024 in./0.06 mm min.; 0.0075 in./0.1905 mm max. (tear-off mode only) |
| Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
| Ribbon Outside Diameter |
1.34 in./34 mm (74 m) |
| Ribbon Standard Length |
243 ft./74 m |
| Ribbon Ratio | 1:1 ribbon to media |
| Ribbon Width | 1.3 in./33 mm – 2.24 in./58 mm |
| Ribbon Core I.D. | 0.5 in./12.7 mm |
Operating Characteristics
| Operating Temp. | 40° to 105° F/4.4° to 41° C |
| Storage Temp. | -40° to 140° F/-40° to 60° C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Electrical | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply |
Options and Accessories
| Healthcare | Available in direct thermal and thermal transfer, our healthcare models include white color scheme, healthcare-compliant power supply, disinfectant-ready, easy-to-clean plastics and sealed button interface, and UV-resistant housing |
| RFID | Available in RFID, supports UHF EPC Gen 2 and RAIN RFID protocols, uses Adaptive Encoding Technology and Zebra’s RE40 RFID Reader/Encoder |
| Linerless | Linerless option with cutter – direct thermal model only |
| Media Handling | Dispenser/Peeler: label peel and present with label present sensor (factory installed or field installable) Cutter (factory or field installable) |
| Communications | Field installable RS-232 auto-sensing Serial; Factory installed or field installable wireless dual radio – 802.11ac Wi-Fi and Bluetooth Classic 4.2 |
| Battery | Provides power to the printer to support a full shift of printing at maximum print speed; supports all media handling options |
| Real Time Clock | Real time clock included as standard on network connected models |
| Keyboard Display Unit | ZKDU keyboard display unit for stand-alone printing solution |
| Mounting Adapter Bracket | Enable printer to be mounted in same location as LP/TLP2824 Plus printer |
Fonts/Graphics/Symbologies
| Barcode Ratios | 2:1 and 3:1 |
| 1D Barcodes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code |
| 2D Barcodes | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font 64 MB user available non-volatile memory, 8 MB user available SDRAM |
Printers Supplies
| For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies to ensure consistent, optimized performance for your Zebra printer. |
Regulatory
| IEC 60950-1, IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM |
Environmental Compliance
| Environment • RoHS Directive 2011/65/EU; Amendment 2015/863 • REACH SVHC 1907/2006 For a complete list of product and materials compliance, please visit: www.zebra.com/environment |
Print DNA Software
| Print DNA is a suite of software that enables Zebra printers to deliver a full lifecycle of exceptional experiences for every kind of user through built-in applications, utilities and tools to get your printer up and running quickly and securely. For more information, please visit www.zebra.com/printdna |
Included In The Box
| Printer, empty ribbon take-up core – thermal transfer model (0.5 in.), AC power supply, power cord(s), USB cable, Quick Start Guide, Regulatory Guide |
Recommended Services
| Zebra OneCare™ maintenance plans provide peak performance and device uptime while protecting your critical operations and your printers with defined service levels. For more information go to www.zebra.com/zebraonecare |
|
| Zebra OneCare Select |
Comprehensive Coverage, including printheads, normal wear and accidental breakage Priority access 24×7 live technical support and software updates Advance Replacement and Express Shipping (Next Day Device Replacement) Standard Commissioning Online Return Material Authorization (RMA) support |
| Zebra OneCare Essential |
Comprehensive Coverage, including printheads, normal wear and accidental breakage Priority access 8×5 live technical support and software updates Three-day depot repair turnaround time plus free return ground shipping Online Return Material Authorization (RMA) support |
| Note: Service availability may vary by region |
