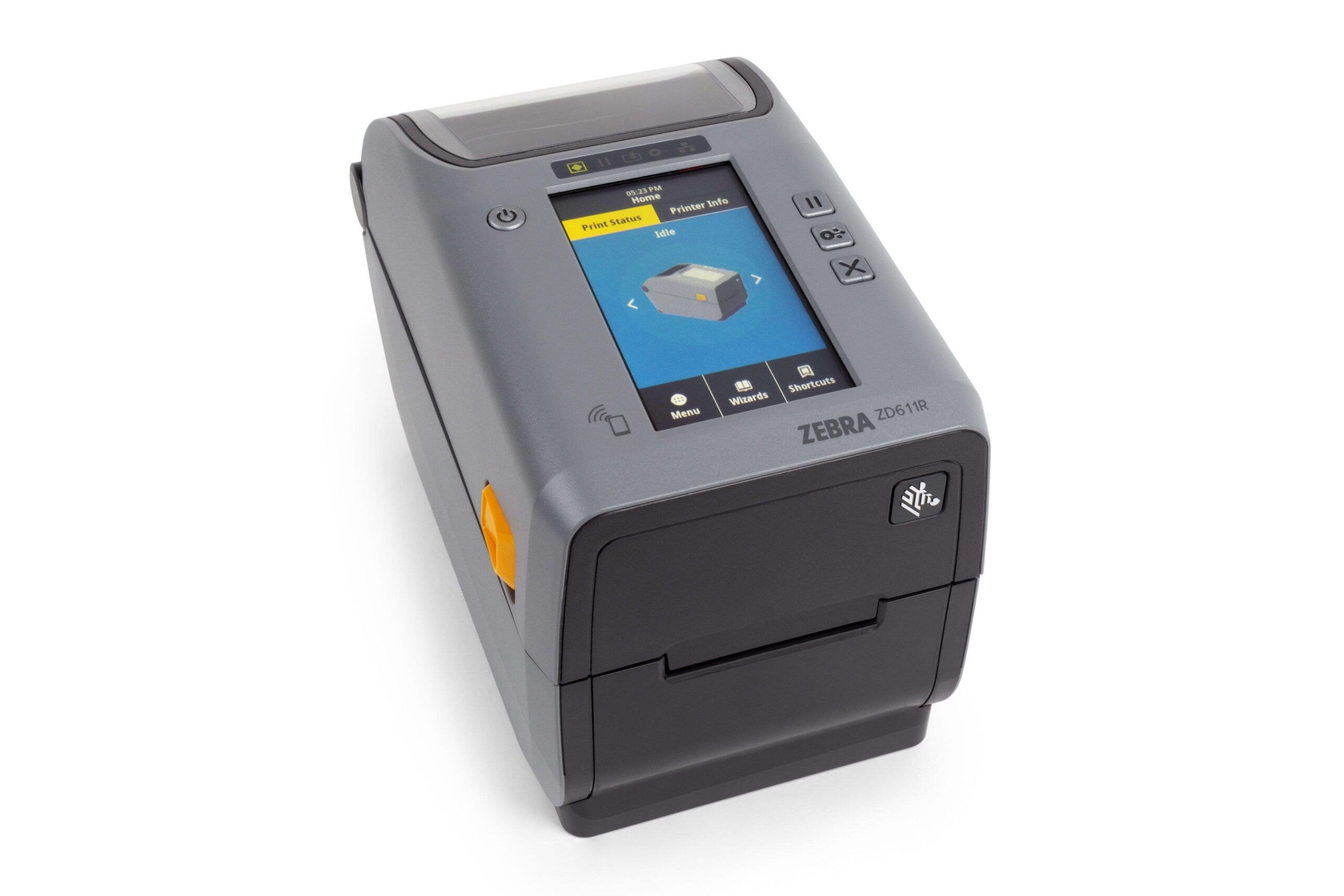

ZD611R DESKTOP PRINTER


Premium 2-Inch RFID Printing/Encoding





The industry’s only 2-inch RAIN RFID desktop printer/encoder, the ZD611R gives you superior feature, next-generation technology and maximum performance in a compact footprint. Featuring Zebra’s own RE40 RFID module and adaptive encoding technology, it’s simple to calibrate and allows for excellent media flexibility. Make changes and see status quickly with the optional 4.4-inch, full-color LCD touch display.

SPECIFICATIONS





RFID Features



• Supports tags compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols
• Prints and encodes tags with a minimum pitch of 0.6”/16 mm
• Adaptive Encoding Technology simplifies RFID setup and eliminates complex RFID placement guidelines
• RFID job monitoring tools track RFID performance
• Globally certified in more than 70 countries for RFID to support multinational deployments
• RFID log records all RFID data with timestamps, ensuring complete traceability
• RFID ZPL commands provide computability with existing Zebra printers
• Support for industry-standard, multi-vendor chip-based serialization (MCS)
• Integrated Zebra RE40 RFID Reader/Encoder



Standard Features



• Print methods: Thermal Transfer
• ZPL and EPL programming languages
• 4.3” full color touch LCD (resolution: 480 wide x 272 high) with 3-button user interface
• Ethernet, USB 2.0, USB Host
• Printer setup mobile app for Android and iOS via BLE
(Bluetooth Low Energy 5) connection*
* BLE is intended for use with Zebra printer setup mobile app only
• Real Time Clock (RTC)
• Media dancer for excellent print quality
• OpenACCESS™ for easy media loading
• Dual-wall frame construction
• ENERGY STAR® certified
• ZebraDesigner Essentials – easy label design tool free at
www.zebra.com/zebradesigner
• PDF Direct
• Two-year standard warranty



Physical Characteristics



Dimensions ZD621R:
10.5 in. L x 8.0 in. W x 7.5 in. H
267 mm L x 202 mm W x 192 mm HZD611R:
9.56 in. L x 5.46 in. W x 6.66 in. H
242.9 mm L x 138.7 mm W x 169.2 mm H
Weight ZD621R: 5.5 lb./2.5 kg
ZD611R: 3.59 lb./1.629 kg



Printer Specifications



Operating System Link-OS® printer operating system
Resolution 203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
Memory 512 MB Flash; 256MB DDR3 SDRAM
Maximum Print
Width
ZD621R: 4.09 in./104 mm for 203 dpi; 4.16 in./105 mm for 300 dpi
ZD611R: 2.2 in./56 mm for 203 dpi; 2.13 in./54 mm for 300 dpi
Maximum
Print Speed
8 in./203 mm per second (203 dpi)
6 in./152 mm per second (300 dpi)
Media Sensors Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor
Firmware ZPL II; EPL 2; XML; ZBI; PDF Direct



Media and Ribbon Characteristics



Label Length Maximum: 39.0 in./991 mm
Minimum: 0.25 in./6.35 mm
Media Width ZD621R: 0.585 in./15 mm to 4.65 in./118 mm
ZD611R: 0.585 in./15 mm to 2.25 in./57 mm
Media Roll Size Maximum outer diameter: 5.00 in./127 mm
Core inner diameter: 0.5 in./12.7 mm and
1.0 in./25.4 mm standard, 1.5 in./38.1, 2.0 in./50.8 mm and 3.0 in./76.2 mm using optional adapters
Media Thickness 0.0024 in./0.06 mm min.; 0.0075 in./0.1905 mm max. (tear-off mode only)
Media Types Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Ribbon Outside Diameter 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m)
Ribbon Standard Length 984 ft./300 m; 243 ft./74 m
Ribbon Ratio 1:4 ribbon to media (300 m)
1:1 ribbon to media (74 m)
Ribbon Width ZD621R: 1.3 in./33 mm – 4.3 in./109.2 mm
ZD611R: 1.3 in./33 mm – 2.24 in./58 mm
Ribbon Core I.D. 300 meter ribbon 1 in./25.4 mm
74 meter ribbon 0.5 in./12.7 mm



Operating Characteristics



Operating Temp. 40° to 105° F/4.4° to 41° C
Storage Temp. -40° to 140° F/-40° to 60° C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Electrical Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply



Options and Accessories



Media Handling Dispenser/Peeler: label peel and present with label present sensor (factory installed or field installable)
Cutter (factory or field installable)
Communications Field installable RS-232 auto-sensing Serial, factory installed or field installable wireless dual radio – 802.11ac Wi-Fi and Bluetooth Classic 4.2
Battery Provides power to the printer to support a full shift of printing at maximum print speed; supports all media handling options
Real Time Clock Real time clock included as standard on network connected models
Keyboard Display Unit ZKDU keyboard display unit for stand-alone printing solution
Mounting Adapter Bracket Enable printer to be mounted in same location as TLP2824 Plus printer



Fonts/Graphics/Symbologies



Barcode Ratios 2:1 and 3:1
1D Barcodes Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard
2D Barcodes Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Fonts and Graphics 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font 64 MB user available non-volatile memory, 8 MB user available SDRAM

Printers Supplies



For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies to ensure consistent, optimized performance for your Zebra printer.



Regulatory



IEC 60950-1, IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM



Environmental Compliance



Environment
• RoHS Directive 2011/65/EU; Amendment 2015/863
• REACH SVHC 1907/2006
For a complete list of product and materials compliance, please visit:
www.zebra.com/environment



Print DNA Software



Print DNA is a suite of software that enables Zebra printers to deliver a full lifecycle of exceptional experiences for every kind of user through built-in applications, utilities and tools to get your printer up and running quickly and securely. For more information, please visit
www.zebra.com/printdna



Included In The Box



Printer, empty ribbon take-up cores: ZD611R 0.5 in.; ZD621R 1 in. and 0.5 in., AC power supply, power cord(s), USB cable, Quick Start Guide, Regulatory Guide
