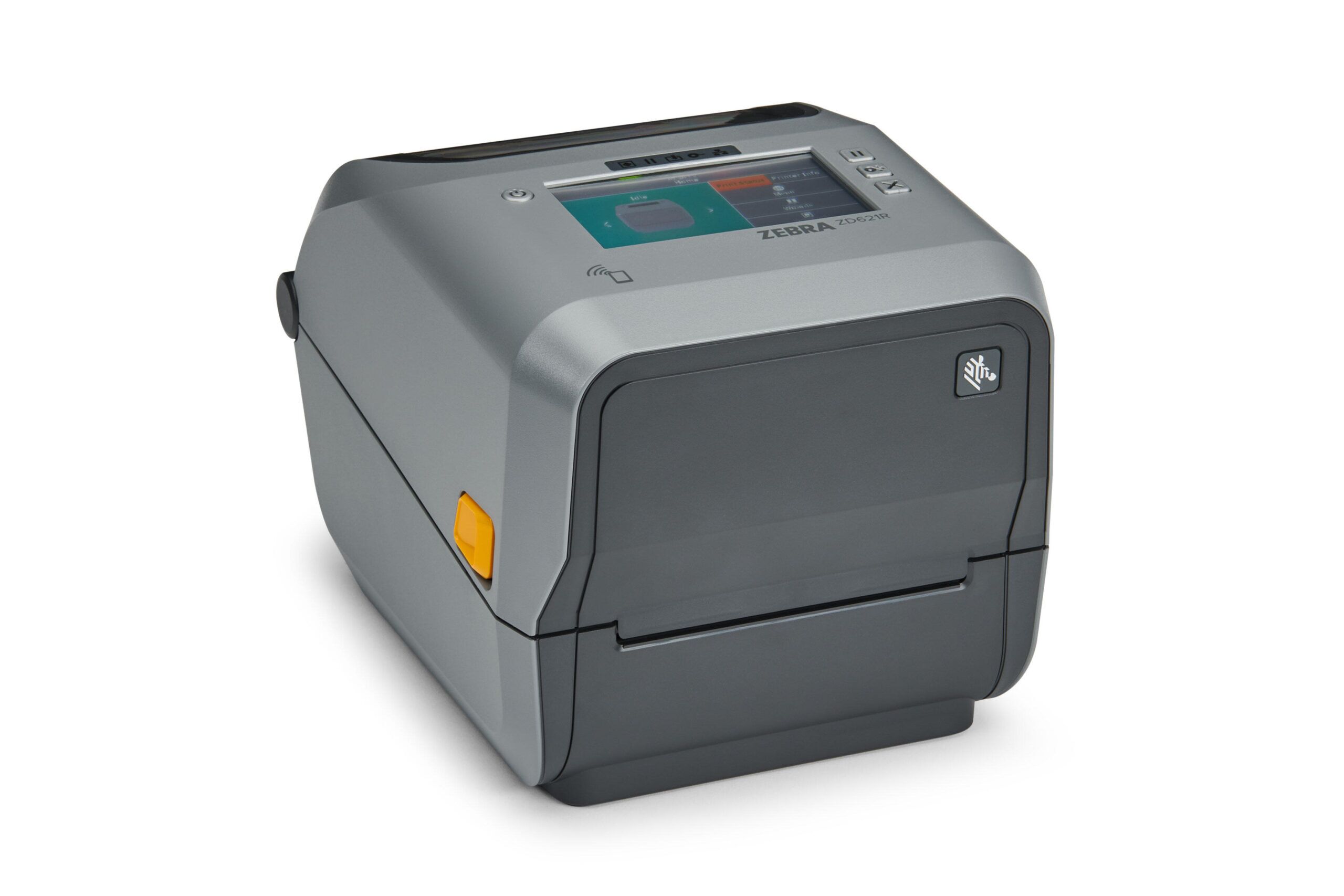

Optimized to efficiently print and encode labels, the 4-inch ZD621R gives you greater tracking abilities, deeper visibility, and enterprise insights – without complication. It comes standard with a 4.3-inch, full color LCD touch display with intuitive menu for easy setup and use.
SPECIFICATIONS
RFID Features
| • Supports tags compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols • Prints and encodes tags with a minimum pitch of 0.6”/16 mm • Adaptive Encoding Technology simplifies RFID setup and eliminates complex RFID placement guidelines • RFID job monitoring tools track RFID performance • Globally certified in more than 70 countries for RFID to support multinational deployments • RFID log records all RFID data with timestamps, ensuring complete traceability • RFID ZPL commands provide computability with existing Zebra printers • Support for industry-standard, multi-vendor chip-based serialization (MCS) • Integrated Zebra RE40 RFID Reader/Encoder |
Standard Features
| • Print methods: Thermal Transfer • ZPL and EPL programming languages • 4.3” full color touch LCD (resolution: 480 wide x 272 high) with 3-button user interface • Ethernet, USB 2.0, USB Host • Printer setup mobile app for Android and iOS via BLE (Bluetooth Low Energy 5) connection* * BLE is intended for use with Zebra printer setup mobile app only • Real Time Clock (RTC) • Media dancer for excellent print quality • OpenACCESS™ for easy media loading • Dual-wall frame construction • ENERGY STAR® certified • ZebraDesigner Essentials – easy label design tool free at www.zebra.com/zebradesigner • PDF Direct • Two-year standard warranty |
Physical Characteristics
| Dimensions | ZD621R: 10.5 in. L x 8.0 in. W x 7.5 in. H 267 mm L x 202 mm W x 192 mm H ZD611R: |
| Weight | ZD621R: 5.5 lb./2.5 kg ZD611R: 3.59 lb./1.629 kg |
Printer Specifications
| Operating System | Link-OS® printer operating system |
| Resolution | 203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional) |
| Memory | 512 MB Flash; 256MB DDR3 SDRAM |
| Maximum Print Width |
ZD621R: 4.09 in./104 mm for 203 dpi; 4.16 in./105 mm for 300 dpi ZD611R: 2.2 in./56 mm for 203 dpi; 2.13 in./54 mm for 300 dpi |
| Maximum Print Speed |
8 in./203 mm per second (203 dpi) 6 in./152 mm per second (300 dpi) |
| Media Sensors | Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor |
| Firmware | ZPL II; EPL 2; XML; ZBI; PDF Direct |
Media and Ribbon Characteristics
| Label Length | Maximum: 39.0 in./991 mm Minimum: 0.25 in./6.35 mm |
| Media Width | ZD621R: 0.585 in./15 mm to 4.65 in./118 mm ZD611R: 0.585 in./15 mm to 2.25 in./57 mm |
| Media Roll Size | Maximum outer diameter: 5.00 in./127 mm Core inner diameter: 0.5 in./12.7 mm and 1.0 in./25.4 mm standard, 1.5 in./38.1, 2.0 in./50.8 mm and 3.0 in./76.2 mm using optional adapters |
| Media Thickness | 0.0024 in./0.06 mm min.; 0.0075 in./0.1905 mm max. (tear-off mode only) |
| Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
| Ribbon Outside Diameter | 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m) |
| Ribbon Standard Length | 984 ft./300 m; 243 ft./74 m |
| Ribbon Ratio | 1:4 ribbon to media (300 m) 1:1 ribbon to media (74 m) |
| Ribbon Width | ZD621R: 1.3 in./33 mm – 4.3 in./109.2 mm ZD611R: 1.3 in./33 mm – 2.24 in./58 mm |
| Ribbon Core I.D. | 300 meter ribbon 1 in./25.4 mm 74 meter ribbon 0.5 in./12.7 mm |
Operating Characteristics
| Operating Temp. | 40° to 105° F/4.4° to 41° C |
| Storage Temp. | -40° to 140° F/-40° to 60° C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Electrical | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply |
Options and Accessories
| Media Handling | Dispenser/Peeler: label peel and present with label present sensor (factory installed or field installable) Cutter (factory or field installable) |
| Communications | Field installable RS-232 auto-sensing Serial, factory installed or field installable wireless dual radio – 802.11ac Wi-Fi and Bluetooth Classic 4.2 |
| Battery | Provides power to the printer to support a full shift of printing at maximum print speed; supports all media handling options |
| Real Time Clock | Real time clock included as standard on network connected models |
| Keyboard Display Unit | ZKDU keyboard display unit for stand-alone printing solution |
| Mounting Adapter Bracket | Enable printer to be mounted in same location as TLP2824 Plus printer |
Fonts/Graphics/Symbologies
| Barcode Ratios | 2:1 and 3:1 |
| 1D Barcodes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard |
| 2D Barcodes | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font 64 MB user available non-volatile memory, 8 MB user available SDRAM |
Printers Supplies
| For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies to ensure consistent, optimized performance for your Zebra printer. |
Regulatory
| IEC 60950-1, IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM |
Environmental Compliance
| Environment • RoHS Directive 2011/65/EU; Amendment 2015/863 • REACH SVHC 1907/2006 For a complete list of product and materials compliance, please visit: www.zebra.com/environment |
Print DNA Software
| Print DNA is a suite of software that enables Zebra printers to deliver a full lifecycle of exceptional experiences for every kind of user through built-in applications, utilities and tools to get your printer up and running quickly and securely. For more information, please visit www.zebra.com/printdna |
Included In The Box
| Printer, empty ribbon take-up cores: ZD611R 0.5 in.; ZD621R 1 in. and 0.5 in., AC power supply, power cord(s), USB cable, Quick Start Guide, Regulatory Guide |
