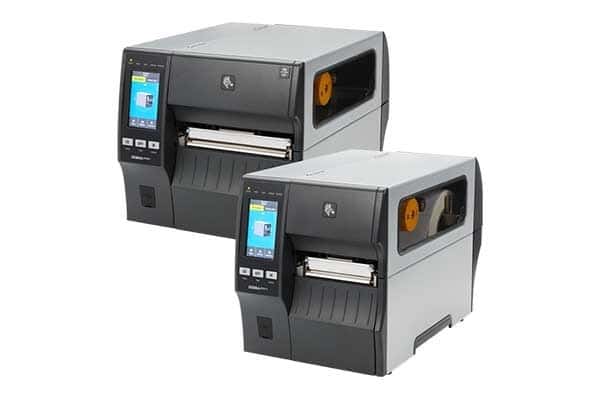

ZT400 SERIES INDUSTRIAL PRINTERS


A NEW LEVEL OF PERFORMANCE, VERSATILITY AND EASE OF USE





Keep your critical operations running efficiently with Zebra’s durable ZT400 Series printers. The ZT400 offers advanced technology that drives versatility, ease of use and performance to a new level. Available in three print resolutions and two print widths, the ZT400 Series addresses a broad array of applications throughout manufacturing, transportation and logistics, retail and more. See printer status at a glance and manage settings quickly using the large color touch display. Field-installable connectivity, media handling and RFID options let you easily add new features as your needs evolve. And your IT department will find ZT400 printers easy to integrate and manage, thanks to Zebra’s Print DNA suite of applications, utilities and developer tools–all powered by Link-OS®. The result? The ZT400 offers the versatility, reliability and performance to meet your industrial printing needs — today and tomorrow.

The printer is offered in both 4 in. and 6 in. models, with 203 dpi, 300 dpi and 600 dpi* (600 dpi available on 4 in. ZT411 only). Add factory- or field-installable RFID technology to print and encode labels for greater tracking abilities and deeper visibility. Select Zebra’s exclusive ZT411 RFID On-metal Tagging Solution, which is the only dedicated option for printing and encoding thicker RFID labels for metal containers and assets.

Dual USB Host ports for added flexibility

Dual USB Host ports allow you to directly connect a wide range of USB device types. Use a memory stick to replicate firmware, files and configurations, or easily print and transfer formats. Simplify data entry by simultaneously connecting a scanner and keyboard — with two host ports, there’s no need to plug and unplug peripherals.

Designed to evolve with your needs

You can customize the ZT400 with a range of media handling options that can be installed in minutes. Two open media slots accommodate additional communication options. And, the robust processing power and memory can support firmware upgrades and new Print DNA tools for years to come.

EFFORTLESS TO INTEGRATE AND OPERATE

Large color touch display makes operation a snap

It’s easy to set up and use the ZT400 with its intuitive icon-based interface. The 4.3-inch full-color touch display allows you to quickly navigate printer settings with the user friendly icon menu system to change languages, printer settings, connectivity options and more.

Standard Features

  • Print Methods: Thermal transfer and direct thermal printing
  • Construction: Metal frame and bi-fold metal media cover with enlarged clear
    viewing window
  • Side-loading supplies path for simplified media and ribbon loading
  • Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
  • Communications: USB 2.0, high-speed, RS-232 Serial, 10/100 Ethernet,
    Bluetooth 4.1, Dual USB Host
  • 4.3-inch color touch display with intuitive menu for quick operation and settings
    management
  • Bi-colored status LEDs for quick printer status
  • ENERGY STAR qualified
  • Zebra Designer Essentials: easy label design tool free at
    www.zebra.com/zebradesigner

Physical Characteristics

Dimensions (closed)* ZT411: 19.5 in. L x 10.6 in. W x 12.75 in. H
495 mm L x 269 mm W x 324 mm H
ZT421: 19.5 in. L x 13.25 in. W x 12.75 H
495 mm L x 336 mm W x 324 mm H
Dimensions are for the base model printer. Consult your sales representative for specifics regarding other configurations.
Weight ZT411: 36 lbs./16.33 kg
ZT421: 40 lbs./18.14 kg

Printer Specifications

Resolution 203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
600 dpi/24 dots per mm (optional for ZT411 only)
Memory 256 MB SDRAM memory
512 MB on-board linear Flash memory
Maximum Print Width ZT411: 4.09 in./104 mm
ZT421: 6.6 in./168 mm
Maximum Print Speed ZT411: 14 ips/356 mm per second
ZT421: 12 ips/305 mm per second
Media Sensors Adjustable dual media sensors: transmissive and reflective
Print Length ZT411

  • 203 dpi: 157 in./3988 mm
  • 300 dpi: 73 in./1854 mm
  • 600 dpi: 39 in./991 mm

ZT421

  • 203 dpi: 102 in./2591 mm
  • 300 dpi: 45 in./1143 mm

Media Characteristics

Maximum Media Width ZT411

  • 1.00 in./25.4 mm to 4.5 in./114 mm tear/cutter
  • 1.00 in./25.4 mm to 4.25 in./108 mm peel/rewind

ZT421

  • 2.00 in./51 mm to 7.0 in./178 mm tear/cutter
  • 2.00 in./51 mm to 6.75 in./171 mm peel/rewind
Maximum Media Roll Size 8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core
Thickness 0.0023 in./0.058 mm to 0.010 in./0.25 mm
Media Types Continuous, die-cut, notch, black-mark

Ribbon Characteristics

Standard Length 1476 ft./450 M
Width ZT411: 2.00 in./51 mm to 4.33 in./110 mm
ZT421: 2.00 in./51 mm to 6.85 in./174 mm
Core 1.0 in./25 mm I.D.

Environmental

Operating Temperature Thermal transfer: 40º F to 104º F/5º C to 40º C
Direct thermal: 32º F to 104º F/0º C to 40º C
Storage/Transportation Temperature -40º F to 140º F/-40º C to 60º C
Operating Humidity 20% to 85% non-condensing
Storage Humidity 5% to 85% non-condensing

Firmware

ZBI 2.0™ — Optional powerful programming language that lets printers run standalone applications, connect to peripherals, and much more.
ZPL and ZPL II® — Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers.
EPL and EPL2™— Eltron® Programming Language with Line Mode simplifies label formatting and enables format compatibility with legacy applications. (EPL available on 203 dpi models only.)

Electrical

Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz, ENERGY STAR qualified

Options and Accessories

Communication Two open communication slots to add internal
cards for:

  • Dual band 802.11ac Wi-Fi and Bluetooth
  • Parallel (bi-directional interface)
  • 10/100 Ethernet
  • Applicator interface
Media Handling
  • Rewind: Internally rewinds a full roll of printed labels on 3” core, or peels and rewinds liner (factory installed only)
  • Peel: Front-mount, passive peel option
  • Peel: Liner take-up — additional full-roll liner takeup spindle accommodates standard printer base
  • Cutter: Front-mount guillotine cutter and catch tray
  • 1 in. I.D. Core media supply hanger (ZT411 only)
  • Ink-side in ribbon supply (ZT411 only)
RFID
  • Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols
  • Integrated RFID system is user-upgradable in the field and available on both 4 in. and 6 in. models
  • Adaptive Encoding Technology automatically selects optimum encode settings
  • Field installable on-metal RFID kit available*
Keyboard Display Unit ZKDU™ keyboard display units for stand-alone printing applications

Fonts and Graphics

16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts
Asian and other international scalable and smooth bitmapped fonts
Unicode™: For multi-language printing
Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats
IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control
Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0
64 MB user-available non-volatile memory storage for downloadable objects
8 MB user-available SDRAM

Barcode Symbologies

Linear Barcodes Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
Two Dimensional Barcodes Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

Agency Approvals

Safety and EMC IEC 62368, Class B, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3
Product Markings Including, not limited to, cTUVus, CE, FCC, ICES-003(B), VCCI, RCM, NOM, S-Mark, CCC, EAC, BSMI, KCC, SABS, In-Metro, BIS.

Print DNA Software Solutions

Development Tools With faster, easier and smarter integration of Zebra printers with your devices and applications, your Zebra printing solutions are up and running in less time, with less cost.
Management Tools Minimize IT effort and maximize IT control with Print DNA management tools — the easy way to add and manage any number of printers, anywhere — from a handful of printers to thousands of printers all around the world.
Productivity Tools Reach new levels of productivity with innovations that streamline tasks and workflows, optimize device performance and solve tomorrow’s printing problems today.
Visibility Tools Regardless of whether or not you have an existing Mobile Device Management solution in place, robust visibility tools provide unparalleled insight into printer health, usage and performance.

Recommended Services

Zebra OneCare Essential and Select Services maximize the availability and productivity of your devices. Key features include 24/7 technical support, comprehensive coverage, advance replacement and software updates. Optional Support and Visibility Services are available. For more information go to
www.zebra.com/zebraonecare.
(Note: Service availability may vary by region.)

Footnotes

Features are subject to availability. Specifications are subject to change without notice.
