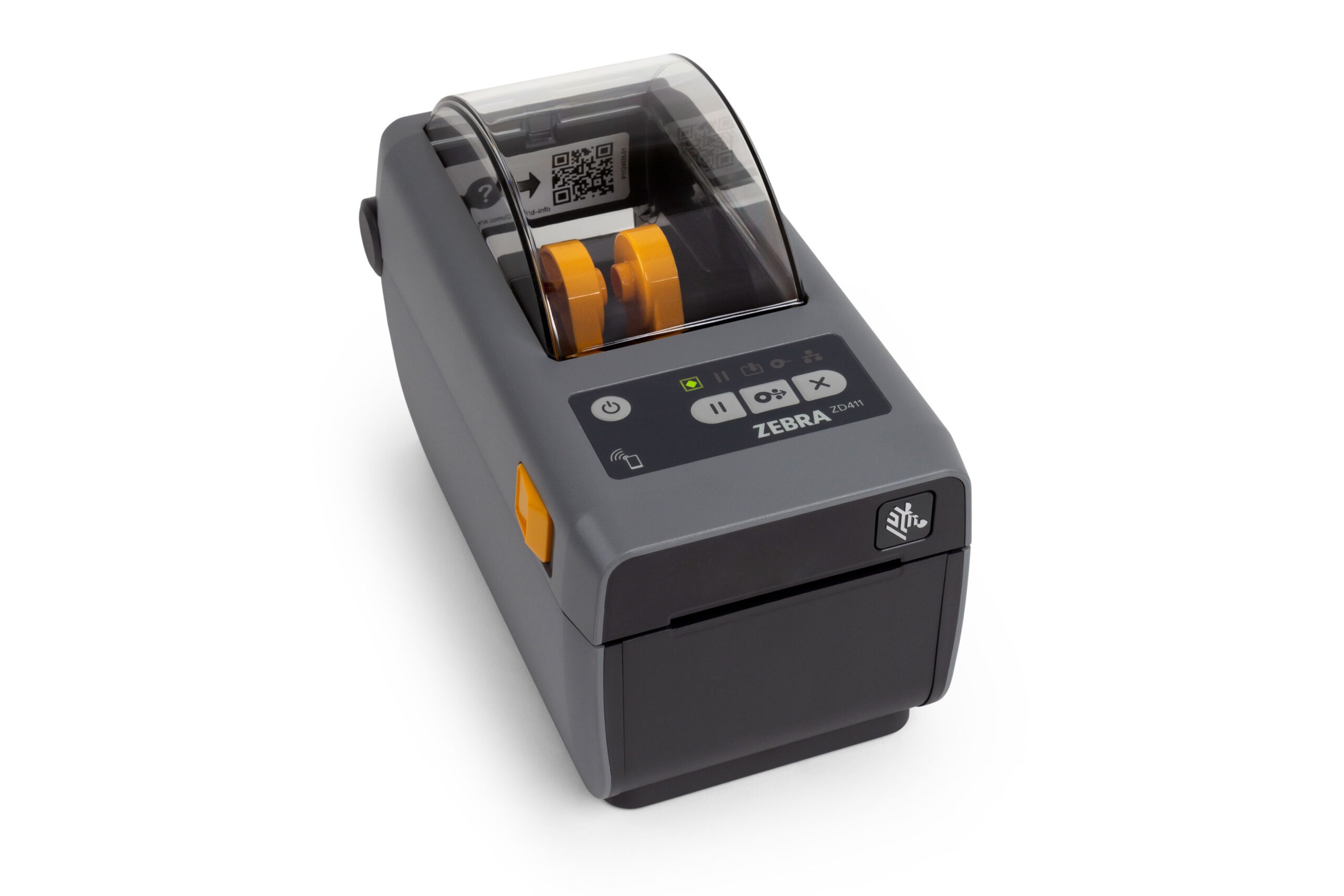

ZD411 DESKTOP PRINTERS


ELEVATE YOUR EXPECTATIONS WITH THE ADVANCED, COMPACT PRINTERS, BUILT FOR ENDURING PERFORMANCE

Your operations demand reliable printing. You need enhanced features, security, next-generation technology and management capabilities to help you work smarter and achieve more. Get it all with Zebra’s compact, 2-inch ZD411 desktop printers, designed to fit almost anywhere. Featuring a new architecture and our exclusive Print DNA software suite, they offer enhanced processing power, unmatched security and intuitive setup and operation. Change media quickly with the new media handling design and add capabilities with field-installable options. Connect your way and incorporate wireless capabilities with the optional kit. An extension of the proven ZD400 Series, they’re ready to perform flawlessly for years to come.

ZD411 printers have five LED icons that allow you to instantly see what’s needed to keep your printers up and running, from replenishing media to resolving printer issues. The advanced three-button user interface replaces the typical single-button/single-light interface common in desktop printers.

SIMPLE TO SETUP, USE AND MANAGE TODAY

Ready to Evolve for Tomorrow

Featuring Zebra’s Print DNA software suite, ZD411 printers are easy to integrate, simple to operate and can be managed onsite or remotely via a web-based dashboard. They’re designed to evolve with technology with an innovative architecture that powers future printing and emerging applications to keep your workflows at peak performance.

Change Media Easily

Color-coded touch points and a new media-handling design guide you through speedy media changes to keep printers operational and workers on task. Replace ribbon intuitively and quickly with less mess, hassle and training time – and fewer calls into IT.

MULTIPLE MODELS TO MATCH YOUR NEEDS

Flexibility for Nearly Every Use Case

Available in direct thermal, thermal transfer and healthcare models, ZD411 printers support supports nearly any 2-inch printing application.

Standard Features

• Print methods: Thermal Transfer or Direct Thermal
• ZPL and EPL programming languages
• 5 status icon, 3 button user interface
• USB 2.0, USB Host
• Printer setup mobile app for Android and iOS via BLE
(Bluetooth Low Energy 5) connection*
* BLE is provided for use with Zebra printer setup mobile app only
• Real Time Clock (RTC)
• OpenACCESS™ for easy media loading
• Dual-wall frame construction
• ENERGY STAR® certified
• ZebraDesigner Essentials – easy label design tool free at
www.zebra.com/zebradesigner
• PDF Direct
• Two-year standard warranty

Physical Characteristics

Dimensions ZD411d:
8.6 in. L x 4.5 in. W x 6.0 in. H
220 mm L x 115 mm W x 151 mm H

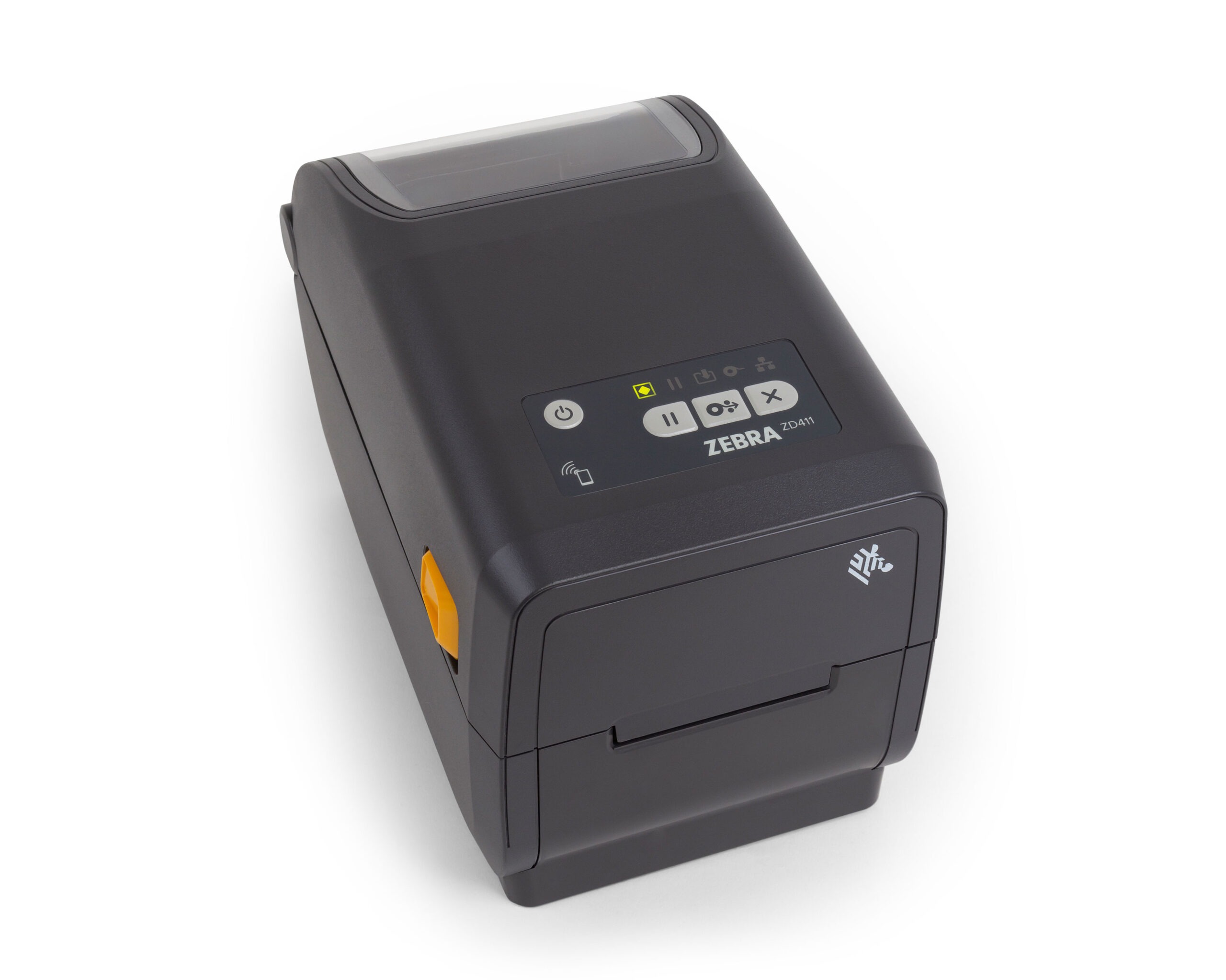

ZD411t:
9.56 in. L x 5.46 in. W x 6.66 in. H
242.9 mm L x 138.7 mm W x 169.2 mm H

Weight ZD411d: 2.2 lb./1.0 kg
ZD411t: 3.59 lb./1.629 kg

Printer Specifications

Operating System Link-OS® printer operating system
Resolution 203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
Memory 512 MB Flash; 256MB DDR3 SDRAM
Maximum Print
Width
2.2 in./56 mm for 203 dpi
2.13 in./54 mm for 300 dpi
Maximum
Print Speed
6 in./152 mm per second (203 dpi)
4 in./102 mm per second (300 dpi)
Media Sensors Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor
Firmware ZPL II; EPL 2; XML; ZBI; PDF Direct

Media and Ribbon Characteristics

Label Length Minimum: 0.25 in./6.35 mm
Maximum: 39.0 in./991 mm
Media Width Minimum 0.585 in./15 mm
Maximum: 2.25 in./57 mm
Media Roll Size Maximum outer diameter: 5.00 in./127 mm
Core inner diameter: 0.5 in./12.7 mm and
1.0 in./25.4 mm standard, 1.5 in./38.1, 2.0 in./50.8 mm and 3.0 in./76.2 mm using optional adapters
Media Thickness 0.0024 in./0.06 mm min; 0.0075 in./0.1905 mm max. (tear-off mode only)
Media Types Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Ribbon Outside Diameter 1.34 in./34 mm (74 m)
Ribbon Standard Length 243 ft./74 m
Ribbon Ratio 1:1 ribbon to media
Ribbon Width 1.3 in./33 mm – 2.24 in./58 mm
Ribbon Core I.D. 0.5 in./12.7 mm

Operating Characteristics

Operating Temp. 40° to 105° F/4.4° to 41° C
Storage Temp. -40° to 140° F/-40° to 60° C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Electrical Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply

Options and Accessories

Healthcare Our healthcare direct thermal model includes white color scheme, healthcare-compliant power supply, disinfectant-ready, easy-to-clean plastics and sealed button interface, and UV-resistant housing
Media Handling Dispenser/Peeler: label peel and present with label present sensor (factory installed or field installable)
Cutter (field installable)
Communications Field installable Ethernet 10/100, Serial RS-232 auto-sensing, wireless dual radio – 802.11ac Wi-Fi and Bluetooth Classic 4.1
Battery Provides power to the printer to support a full shift of printing at maximum print speed; supports all media handling options
Real Time Clock Real time clock included as standard on network connected models
Keyboard Display Unit ZKDU keyboard display unit for stand-alone printing solution
Mounting Adapter Bracket Enable printer to be mounted in same location as LP/TLP2824 Plus printer

Fonts/Graphics/Symbologies

Barcode Ratios 2:1 and 3:1
1D Barcodes Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard
2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
2D Barcodes Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Fonts and Graphics 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font 64 MB user available non-volatile memory, 8 MB user available SDRAM

Printers Supplies

For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies to ensure consistent, optimized performance for your Zebra printer.

Regulatory

IEC 60950-1, IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
