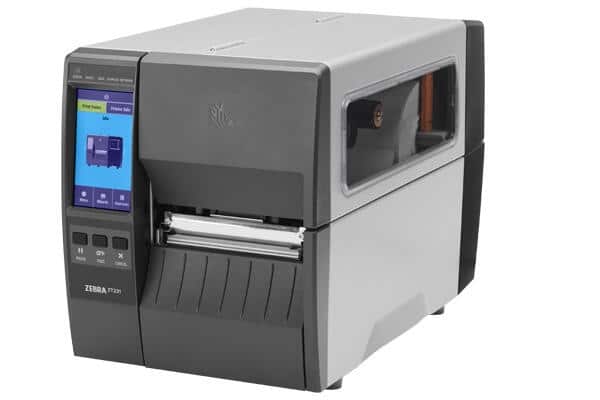

ZT231 RFID INDUSTRIAL PRINTER


AFFORDABLE, INDUSTRIAL RFID PRINTING/ENCODING



Today’s supply chain is driving the need for real-time omni-channel visibility, end-to-end transparency and rigorous safety and compliance. At the same time, your production costs are escalating and timelines are shrinking. Stay competitive with RFID. Zebra’s ZT231 RFID* introduces affordable, quality UHF RFID printing and encoding for greater tracking capabilities and efficiencies – all in a space-saving footprint.

New to RFID? Zebra’s intuitive RFID technology is easy to adopt. Access wizards for simple set up. Automatically calibrate media in minutes without pre-testing or complex placement guidelines. As your tracking needs advance, know you’re backed by our unmatched RFID portfolio.

ADVANCE YOUR RFID CAPABILITIES

With the Broadest, Field-Proven Portfolio

As you’re incorporating RFID solutions, take advantage of Zebra’s unrivaled portfolio of RFID printers, readers, sensors and inlays to give you a competitive edge and stay ahead of advancing technology. No matter your needs, know you’re backed by an industry leader with decades of proven expertise.

INNOVATIVE SOLUTIONS FOR TODAY AND TOMORROW

Get the Most Out of Your Workspace

Want industrial printing capabilities but don’t have the workspace to accommodate it? The ZT231 RFID gives you the power and features you need in a compact footprint. Plus, its bi-fold door reduces the height of the printer when open. But don’t let its compact size fool you – it can accommodate a large ribbon roll so you can print longer without changing media.

Make Work Easier

The ZT231 RFID is easy to install, use and manage with Zebra’s Print DNATM suite of apps. Reduce training time and see printer status at a glance with the large color touchscreen. Change RFID settings with the touch of a finger or gloved hand. Get your questions answered with helpful, how-to videos.

RFID



• Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000 -63 and RAIN RFID protocols
• Integrated RFID system is user-upgradable in the field
• Adaptive Encoding Technology automatically selects optimum encode settings



Standard Features



• Print methods: direct-thermal or thermal-transfer
• Construction: metal frame and metal enclosures
• Bi-fold media door with large clear window
• Side-loading supplies path for simplified media and ribbon loading
• Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
• Three-color LEDs for quick printer status
• 4.3” color resistive touch screen with intuitive menu for quick operation and settings
• Communications: USB 2.0, RS-232 Serial port, 10/100 Ethernet, and USB Host
• ENERGY STAR® certified
• Bluetooth Low Energy (BTLE) technology for enhanced location precision
• ZebraDesigner Essentials – easy label design tool free at
www.zebra.com/zebradesigner
• Real-Time Clock (RTC)



Physical Characteristics



Dimensions ZT231 RFID Closed: 17 in. L x 9.5 in. W x 11 in. H
432 mm L x 241 mm W x 279 mm H
ZT231 RFID with Liner Takeup Unit:
17 in. L x 9.5 in. W x 12.75 in. H
432 mm L x 241 mm W x 324 mm H
Weight ZT231 RFID: 20 lbs./9.1 kg
ZT231 RFID with Liner Takeup Unit: 24 lbs./10.9 kg
*Dimensions are for the base model printer. Consult your salesrepresentative for specifics regarding other configurations.



Printer Specifications



Resolution 203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
Memory 256 MB SDRAM memory
256 MB on-board linear Flash memory
Maximum Print Width 4.09 in./104 mm
Maximum Print Speed 12 ips (203 dpi)
8 ips (300 dpi)
Media Sensors Moveable transmissive and reflective sensors
Maximum Print Length 203 dpi: 157 in/3988 mm
300 dpi: 73in/1854 mm



Media Characteristics



Minimum Label and
Liner Length
Tear mode: 0.7 in/18 mm
Cutter mode: 1 in/25 mm
Peel mode: 0.5 in/13 mm
Media Width 0.75 in./19.4 mm to 4.50 in./114 mm
Media Roll Size 8.0 in./203 mm O.D. on a 3.0 in./76 mm I.D. core
6.0 in./152 mm O.D. on a 1.0 in./25 mm I.D. core
Media Thickness 0.003 in./0.076 mm to 0.010 in./0.25 mm
Media Types Continuous, die-cut, notch, black mark



Ribbon Characteristics (Thermal-transfer option only)



Standard Length 1,476 ft./450 m
Width 1.57 in./40 mm to 4.33 in./110 mm
Core 1.0 in./25.4 mm



Operating Characteristics



Operating Temp. Thermal transfer: 40ºF to 105ºF/5º to 40ºC
Direct thermal: 32ºF to 105ºF/0º to 40ºC
Storage/Transportation
Temperature
-40ºF to 140ºF/-40º to 60ºC
Operating Humidity 20% to 85% non-condensing
Storage Humidity 5% to 85% non-condensing
Electrical Universal auto-ranging (PFC-compliant)
power supply 100-240 VAC; 50-60 Hz
ENERGY STAR certified
Agency Approvals IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, UKCA, VCCI, RCM, S- Mark, CCC, CU EAC, BSMI, KCC, and BIS

Print DNA Software



This printer is supported by our Print DNA suite of software capabilities to get your printer up and running quickly and securely, and enable your printer to evolve with your business needs. Print DNA features may vary by model, and some features may require a license.
For more information, please visit
www.zebra.com/printdna



Firmware



ZBI 2.0™ — Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more.
ZPL and ZPL II™ — Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers.



Barcode Symbologies



Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with 2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
2D Barcodes: Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS-14 (and composite)



Fonts and Graphics



7 bitmapped, 1 smooth-scalable (CG Triumvirate™ Bold Condensed*) Pre-loaded Unicode™-compliant scalable fonts for EMEA character sets International character sets supporting the following code page: IBM® Code Page 850
Supports user-defined fonts and graphics, including custom logos ZPL II drawing commands including boxes and lines 64 MB user available Flash memory storage for downloadable objects; 32 MB user-available SDRAM



Options and Accessories



Communication
• 802.11ac Wi-Fi option card
• 10/100 Ethernet option card
• Applicator Interface
Media Handling
• Peel — a front-mount, passive-peel with no take-up spindle
• Peel — a front-mount, passive-peel with liner take-up spindle (factory-fit only)
• Cutter — a front-mount guillotine cutter
RFID*
• UHF field-installable RFID kit
Keyboard Display Unit
• ZKDU™ keyboard display units for stand-alone printing application



Footnote



* RFID option available on request; contact your Zebra account team for more information
